PRODUCT

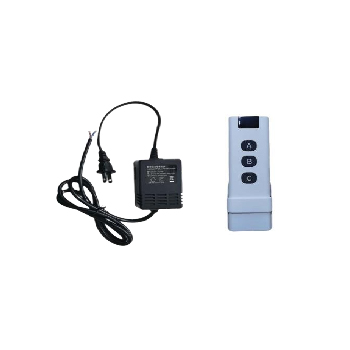

20W power supply
Brand: HOMEWELL
Parameter: Input: 110VAC 60HZ or 220VAC 50HZ(only one choice)
Output: 60VAC MAX.20W (other voltages can be customized)
Output frequency = input frequency
Size: 79*58*48mm
Net Weight(with package): 0.7KG
Safe Application Scope: Single side≤3 Square meters
Two sides≤2.5 Square meters
Transformer is a part of smart film products. it can connected home supply and transfor the walttage to suit smart film needs. transformer can work by remote or knob on the wall. regular transformer can help open and close the smart film. dimming transformer can help smart film switch with dimming effect.
Function: Over voltage protection, over current protection, overload protection, short circuit protection （The timing of the flash can be customized)
| PDLC SMART FILM POWER SUPPLY INSTRODUCTION | |||||
| Name | Parameter | Size | Net Weight(with package) | Safe Application Scope | Function |
|
5w power supply(with switch) |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.5W (other voltages can be customized) Output frequency =input frequency |
79*53*42mm | 0.3KG | ≤0.75 Square meters |
Over voltage protection,over current protection, overload protection, short circuit protection |
| 20W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.20W (other voltages can be customized) Output frequency =input frequency |
79*58*48mm | 0.6KG |
Single side≤3 Square meters Two sides≤2.5 Square meters |
|
| 30W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.20W (other voltages can be customized) Output frequency =input frequency |
120*99*65mm | 1.1KG |
Single side≤5 Square meters Two sides≤4 Square meters |
|
| 50W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.30W(other voltages can be customized) Output frequency =input frequency |
1.2KG |
Single side≤8 Square meters Two sides≤6.5 Square meters |
||
| 100W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.50W (other voltages can be customized) Output frequency =input frequency |
180*109*76mm | 2.5KG |
Single side≤15 Square meters Two sides≤12 Square meters |
|
| 200W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.100W (other voltages can be customized) Output frequency =input Output frequency =input |
200*120*100mm | 3.9KG |
Single side≤30 Square meters Two sides≤25 Square meters |
|
| 300W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.300W (other voltages can be customized) Output frequency =input frequency |
4.8KG |
Single side≤45 Square meters Two sides≤37 Square meters |
||
| 500W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.500W (other voltages can be customized) Output frequency =input frequency |
5.5KG |
Single side≤65 Square meters Two sides≤50 Square meters |
||
Optical performance:
1) Parallel optical transmittance( Power on): ＞75%
Parallel optical transmittance( Power off): ≤2%
2) Visible Light Transmittance( Power on): ≥85%
Visible Light Transmittance(Power off): ＞60%
3) View angle(Power on): ≥145º
4) Haze( Power on): ＜4%
Haze( Power on): ≥96%
5)Response time: Off-On ＜10ms
6) UV resistance: ≥99%
7) Infrared rejection（Power off） ＞20%
