Smart film and glass work by using a technology called PDLC (Polymer Dispersed Liquid Crystal) or SPD (Suspension Polymerization Display) to control the transmission of light through a glass surface.
PDLC smart film consists of two layers of transparent conductive film, which sandwich a layer of liquid crystals dispersed in a polymer matrix. The liquid crystals are randomly oriented when the film is not powered, causing the film to appear opaque or frosted. When an electrical current is applied, the liquid crystals align and the film becomes clear or transparent, allowing light to pass through.
Both smart film and glass can be controlled with a switch, remote control, or smartphone app, allowing the user to adjust the level of privacy and light transmission as needed. Smart glass and film are becoming increasingly popular in applications such as privacy windows, conference rooms, and automotive windows, as they offer convenience, energy efficiency, and enhanced security.

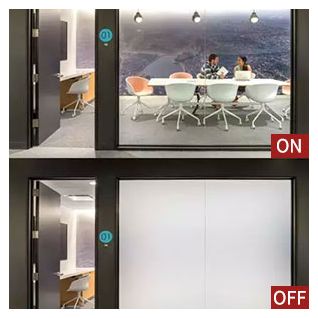

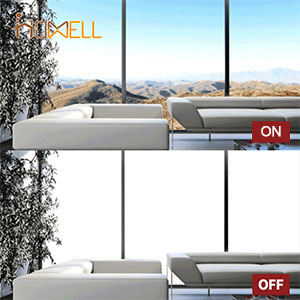

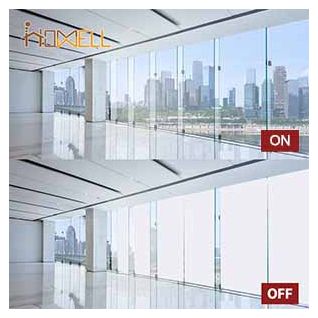

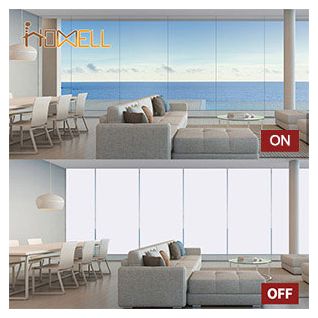

PDLC (Polymer Dispersed Liquid Crystal) Glass is a kindly laminated glass, which can change to be transparent or opaque instant by switching the electricity power by means applying with PDLC film. When power off, coming visible light scatters through the PDLC, and the film turns translucent;When power on, coming visible light transmits the PDLC and the Film turns clear.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5.Projection. When it is under suitable light, the perfect projection appears.
6.No trouble of curtain setting and cleaning.
7.With a modern looking, very good for interior design.
|
Product Parameters
|
84-85% High transmittance PDLC film
|
|
|
84-85% High transmittance PDLC film
|
Laminated
|
|
|
Haze（ON）
|
3%±1
|
3%±1
|
|
Haze（OFF）
|
95%±1
|
95%±1
|
|
Total light transmittance（ON）
|
84%-85%
|
84%-85%
|
|
Total light transmittance（OFF）
|
78%-79%
|
78%-79%
|
|
UV block
|
≥99%
|
≥99%
|
|
IR block(OFF)
|
≥60%
|
≥60%
|
|
Power consumption
|
≤5W/m²
|
≤5W/m²
|
|
Voltage
|
AC60V
|
AC60V
|
Product Function
1) Privacy Protection :
The biggest function of Our pdlc film is privacy protection,which can control the glass between transparent and opaque.It can protect your privacy by our smart film
2) Projection Screem:
Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
3) Safety Protection
Our pdlc film thickness is about 0.36mm. When installed on your glass window,It can adhensive your window closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection:
Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95% infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
Smart film and glass work by using a technology called PDLC (Polymer Dispersed Liquid Crystal) or SPD (Suspension Polymerization Display) to control the transmission of light through a glass surface.
PDLC smart film consists of two layers of transparent conductive film, which sandwich a layer of liquid crystals dispersed in a polymer matrix. The liquid crystals are randomly oriented when the film is not powered, causing the film to appear opaque or frosted. When an electrical current is applied, the liquid crystals align and the film becomes clear or transparent, allowing light to pass through.
Both smart film and glass can be controlled with a switch, remote control, or smartphone app, allowing the user to adjust the level of privacy and light transmission as needed. Smart glass and film are becoming increasingly popular in applications such as privacy windows, conference rooms, and automotive windows, as they offer convenience, energy efficiency, and enhanced security.
